This is driving me nuts. I am a "figure it out myself"
kind of guy and i am stuck on something so simple.
Its a rotary table with a stepper (not sure?) motor. one
revolution of the motor spins the table 90* but not at a

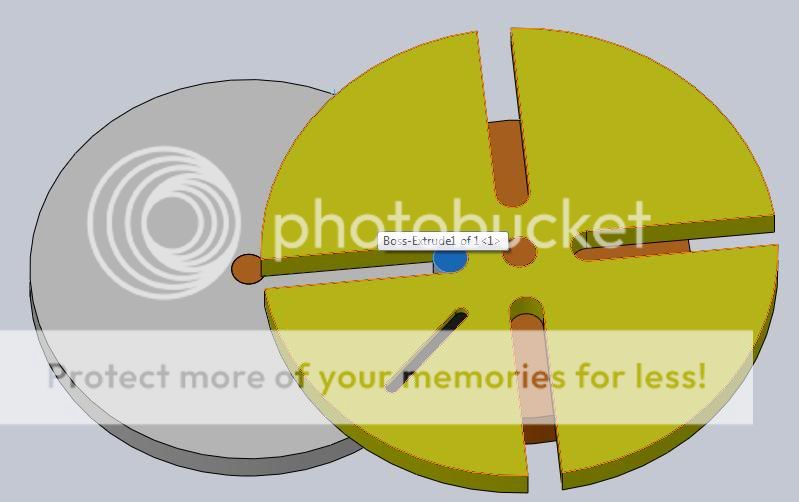

constant speed...the pics explain it. As the pin engages
the table slots, it spins the table 90*. then picks up
the next slot.
what mate to use???
